Are you trying to figure out what size softener you'll need? You've come to the right place. The chart below will help you to determine which of our water softeners are the right fit for your home. Then take a look at the next section to help you figure out what grain capacity you need.
|
Model |
Capacity |
Hardness* |
Ferrous Iron* |
Warranty |
| 20,000 grain |
95 gpg |
6 ppm |
1 Year Parts (5 Yr Extension Available)
10 Yr Salt and Resin Tanks |
|
| 27,000 grain |
95 gpg |
7 ppm |
||
| 27,000 grain |
95 gpg, sediment filter* |
3 ppm |
||
| 30,000 grain |
95 gpg |
7 ppm |
||
| 34,000 grain |
110 gpg |
9 ppm |
||
| 45,000 grain |
120 gpg, sediment filter* |
12 ppm |
1 Year Parts/Labor (5 Yr Parts Extension Available)
3 Year Control Board 10 Yr Salt and Resin Tanks
|
|
| 45,000 grain |
120 gpg, sediment filter* |
12 ppm |
*Hardness and Clear Water (Ferrous) Iron Reduction Values.
*Sediment - the filters are designed the reduce large sediment, visible to the naked eye. There is no rated micron size.
How to Choose a Softener?

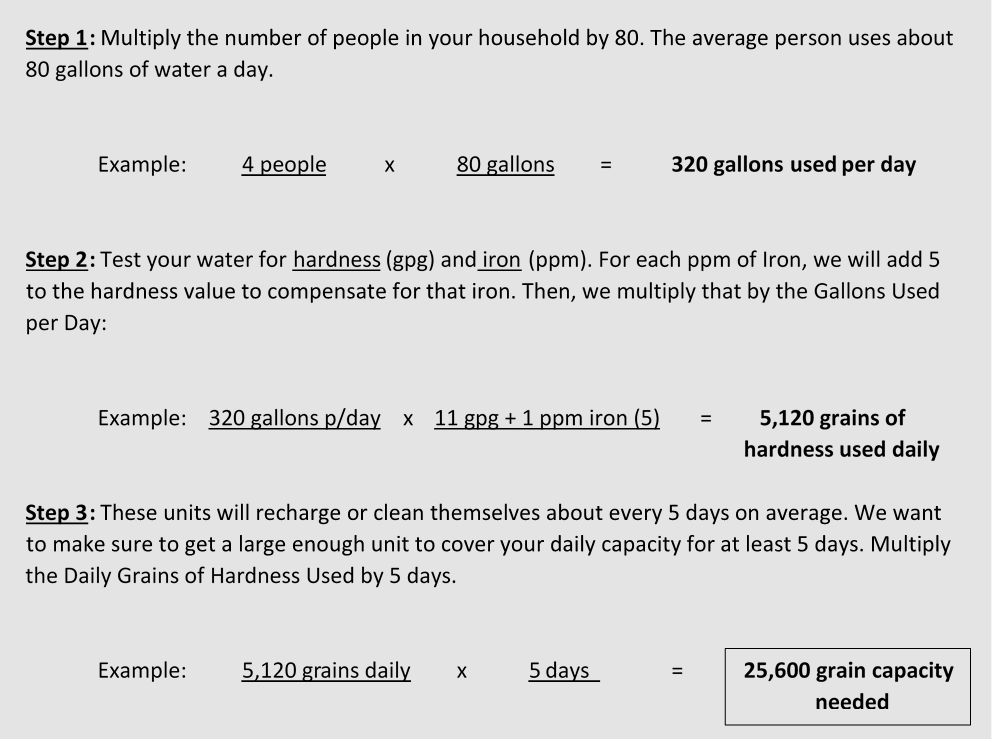

We'll need to do a little math. Let’s start with some calculations to determine the Unit Capacity that best fits your household:
What unit works best for the above example?
Looking at the available units below, we would recommend the M27, HY or 30 for the example above. The Grain Capacity of both units are over the family’s minimum 25,600 grain capacity needed, so those softeners would be the most efficient for the family.
| Model | Grain Capacity |
|
M20 M27 MHY M30 M34 M45 M45C |
20,000 27,000 27,000 30,000 34,000 45,000 45,000 |
